Teraflex JL: Tera30 HD Front Axle Housing – Bare (0–5” Lift) with HD Ball joints & Axle Shafts

Teraflex JL: Tera30 HD Front Axle Housing – Bare (0–5” Lift) with HD Ball joints & Axle Shafts

Dhs. 18,500.00
Dhs. 18,500.00
Sale Sold out
Shipping calculated at checkout.

Teraflex JL: Tera30 HD Front Axle Housing – Bare (0–5” Lift) with HD Ball joints & Axle Shafts

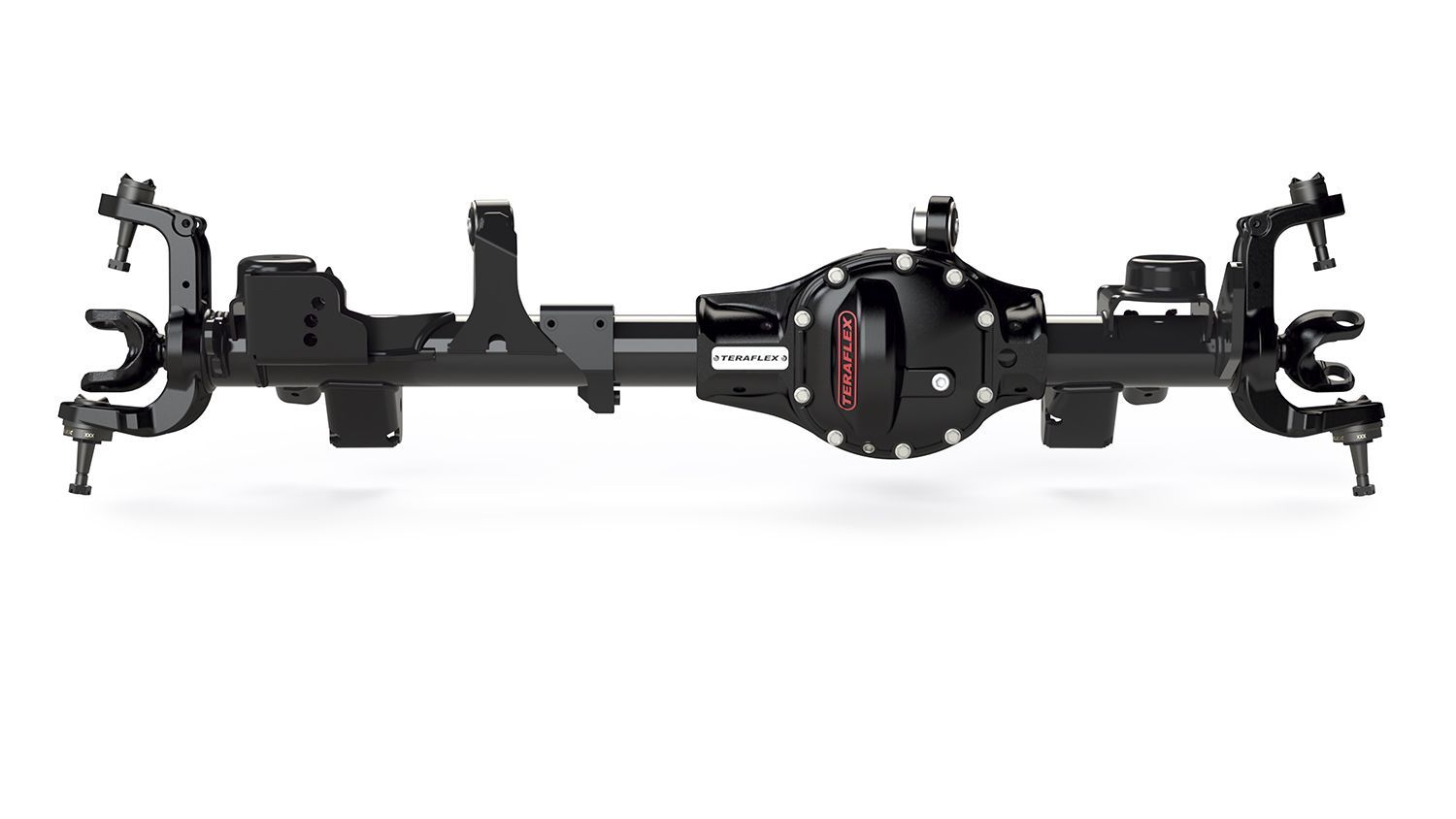

The Teraflex JL: Tera30 HD Front Axle Housing is designed for Jeep Wrangler JL models with a lift of 0–5 inches. This heavy-duty axle housing enhances your vehicle's performance and durability, making it ideal for off-road adventures and tough terrains.

TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles JL and JK Wrangler/Unlimited and JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axle’s weak areas. Our Bare HD Front Axle Housings feature a heavy-duty housing with axle tubes, front inner axle shafts (JL and JT), bracketry, and forged inner knuckles as well as pre-installed inner axle seals and upper control arm bushings. Transfer your existing internal components (differential, ring & pinion) and outer components (stub shafts, unit bearings, knuckle assembly, brakes, sensors) to the new housing! Compatible with Dana 30 AdvanTEK (M186) internal components.

• Lift Height: 0–5”

• WMS-WMS: 66.5”

• Axle Tube: 3.25” x 0.5”

• Locker: NA

• Axle Shafts: 27-Spline

• Wheel Bolt Pattern: 5x5”

• Gear Ratio: NA

• Eliminates center axle disconnect

• Compatible with Dana 30 AdvanTEK (M186) internal components

• 3.25” O.D. x 0.5” wall extreme duty axle tube increases torsional strength to resist bending

• Asymmetric housing design for extra-long tube side strength

• Pre-installed inner axle seals

• HD forged inner knuckles w/ greater upper and lower section strength

• Ductile cast iron housing w/ increased rib gussets

• HD ductile iron differential cover w/ increased cover mounting area

• Smooth radius bottom design to glide over rocks and obstacles

• Integrated lower control arm skid plates

• High-flow oil passages and bottom oil drain hole for simple fluid changes

• UV protected triple-stage powder coat for corrosion resistance

• 1/4”-thick CNC laser cut axle brackets for extreme strength

• Integrated factory location upper control arm mount

• Pre-installed upper control arm bushings

• Proper pinion angle and raised track bar bracket for lifted applications

• Pre-drilled holes on spring perches for bump stop extension bolts

• Retains all factory ESP, ABS, and speedometer sensor capability

• 100% engineered, designed, and built in the USA w/ new components



Key Features

  • Heavy-Duty Construction: Built to withstand the rigors of off-roading.

  • Compatible with 0–5” Lift: Perfectly suited for vehicles with moderate lift modifications.

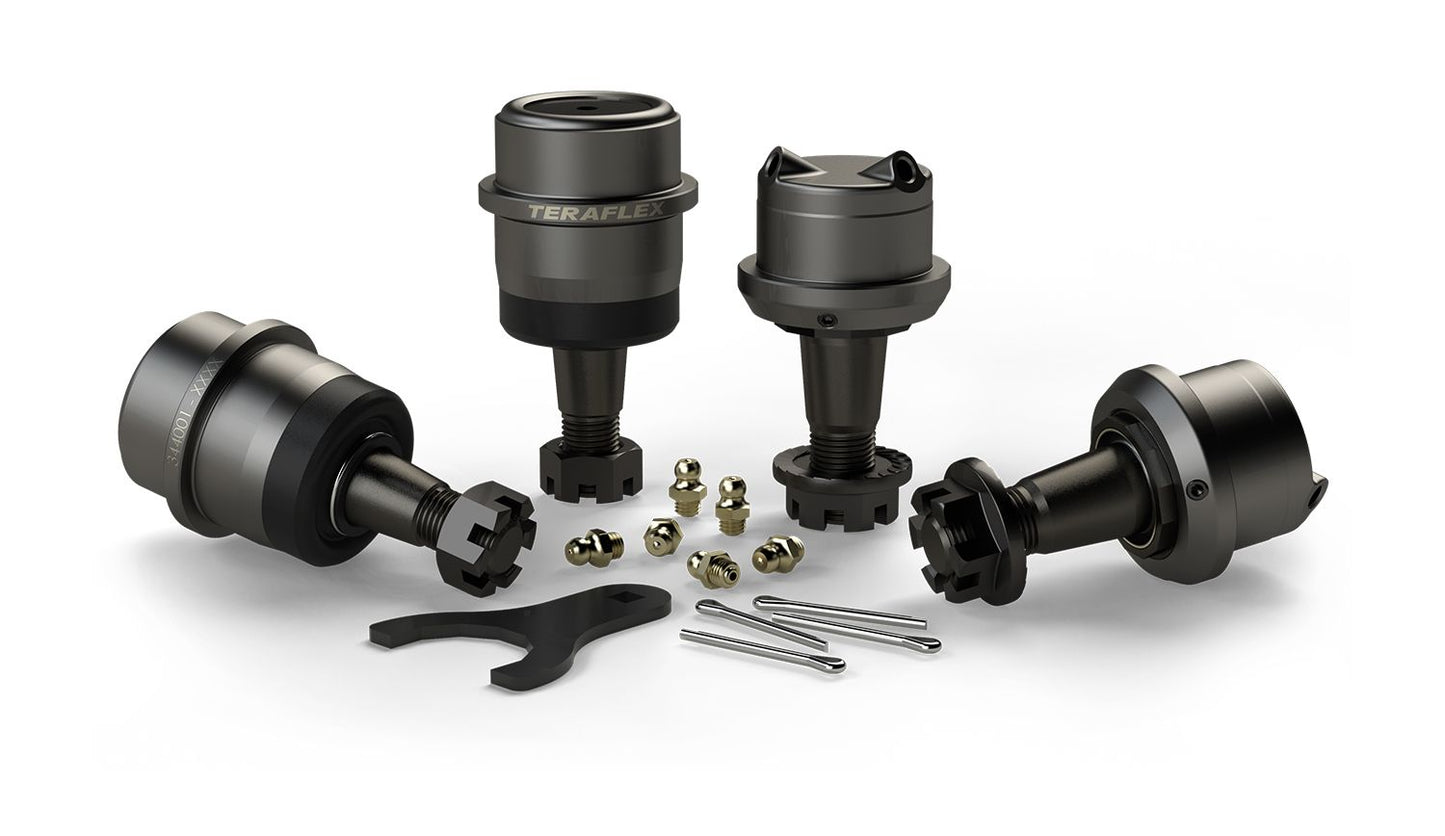

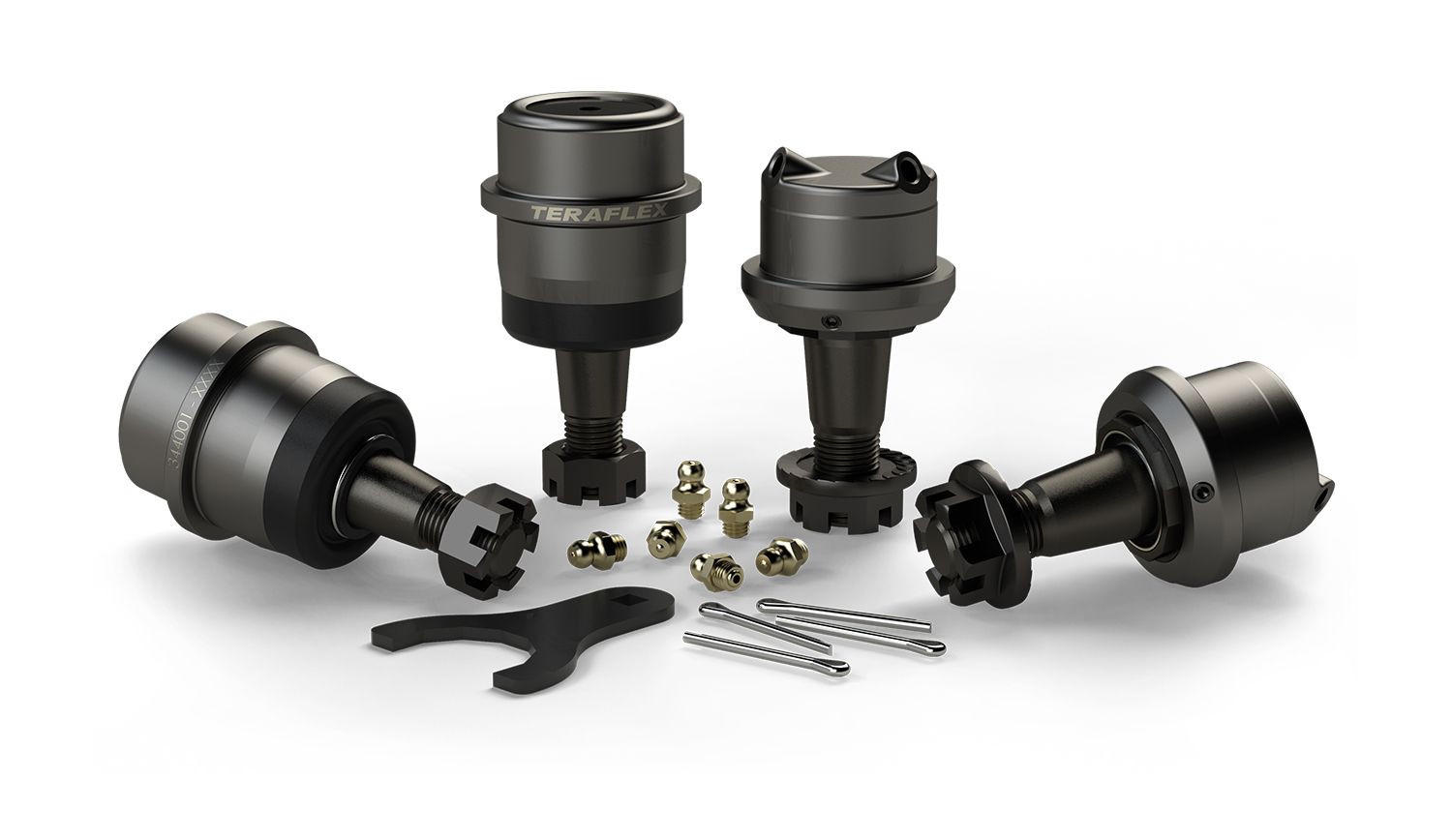

  • Includes HD Ball Joints: Provides superior strength and longevity.

  • Axle Shafts Included: Complete your upgrade with high-performance axle shafts.

  • Enhanced Stability: Improves overall handling and stability during rugged driving.

Applications

This axle housing is specifically designed for Jeep Wrangler JL models, making it a perfect fit for off-road enthusiasts looking to enhance their vehicle's capabilities.

Installation Notes

Professional installation is recommended to ensure optimal performance and safety. Please consult with a qualified technician for installation guidelines.

Warranty Information

The Tera30 HD Front Axle Housing comes with a manufacturer's warranty, ensuring peace of mind with your purchase.



Makes Jeep
Years 2018, 2019, 2020, 2021, 2022, 2023, 2024
Models Wrangler JL 2.0T, Wrangler JL 3.6L
