Galaxy 1.0 | Rooftop Tent (TOPOAK)
Galaxy 1.0 | Rooftop Tent (TOPOAK)
Couldn't load pickup availability
Reliable Power for Any Adventure
Off-grid doesn’t mean going without.
With the built-in Anderson SB50 connector, you can run a portable fridge, light your camp, stay warm with an electric blanket, charge your devices, and power the essentials that turn your camp into a true base.
No workarounds. No compromises. Just clean, reliable power—ready when you are.
Note: Power cable not included. SB50 connector recommended; 10–14 AWG wire, 5A.
Integrated Heating Port – Warmth Wherever You Go
Sub-zero nights? Bring them on.
The built-in heating port lets you easily connect your portable heater, transforming your rooftop tent into a warm, windproof sanctuary—even when the world outside is frozen.
Don’t head home early just because it’s cold. Stay out there. Stay warm. Stay unstoppable.

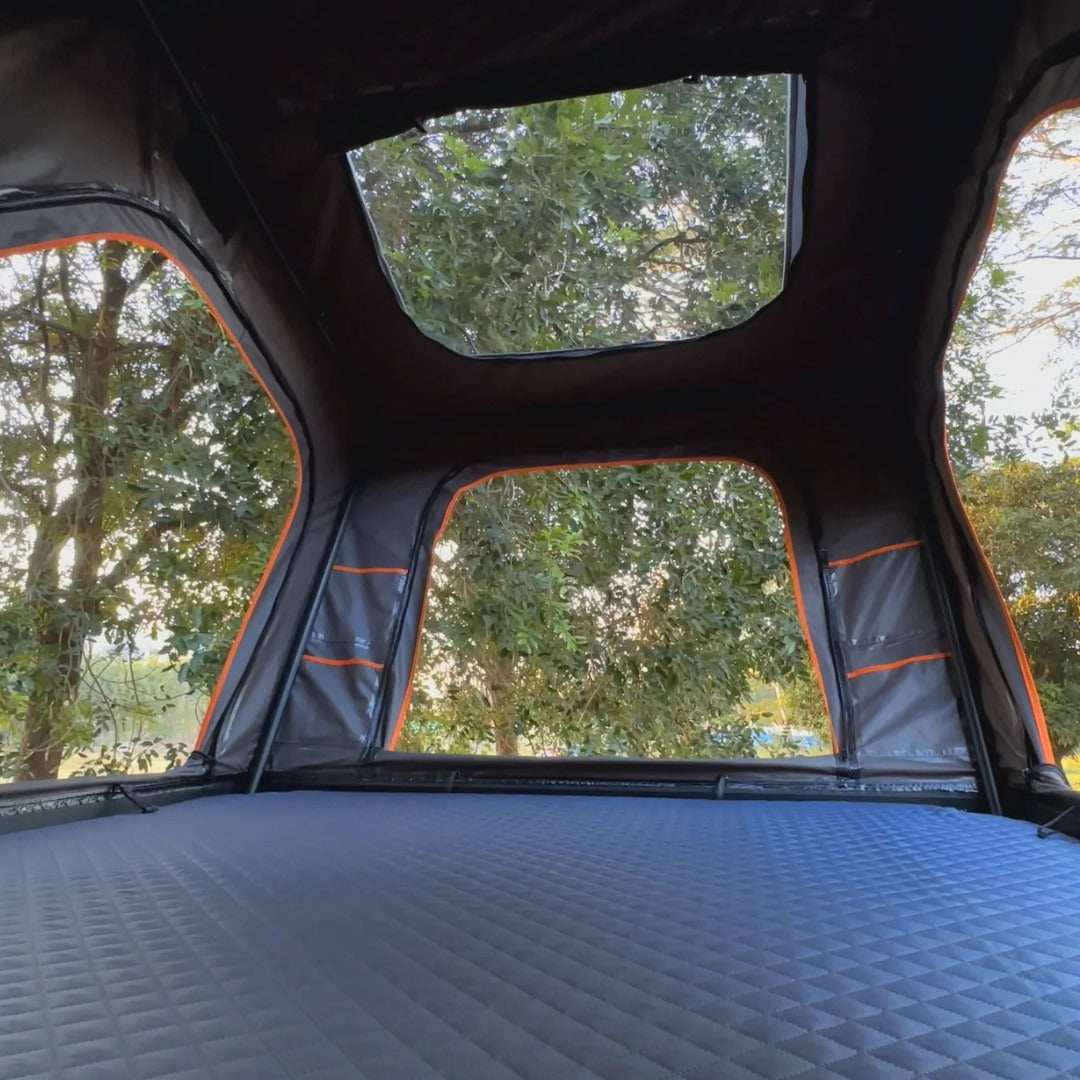

Velvet Comfort – Plush Mattress & Lined Ceiling
Sink into softness with a velvet-lined ceiling above and a thick 2 ¾" plush mattress below.
Enjoy deep, restorative sleep—wherever the road leads.
Blackout Fabric – Darkness on Demand
Wake on your schedule—not the sun’s.
Our upgraded blackout fabric blocks sunlight, glare, and heat, turning your rooftop tent into a quiet, dark sanctuary—any time of day.
Because true rest isn’t ruled by daylight.
| Dimensions | Details |
|---|---|
| Open | 83" × 56" × 53" |
| Closed | 83" × 56" × 8" |
| Package | 89" × 62" × 11" |
| Mattress | 79" × 52" × 2 ³⁄₄" |
| Sleeping Capacity | Fits two adults and one child |
| Net Weight | 165 lbs (75kg) |
| Package Weight | 300 lbs (136 kg) |
| Crossbar Spacing Range |
30" - 60" |
| Specification | Details |
|---|---|
| Floor | Durable, insulating honeycomb aluminum panels |
| Hard Shell Case | Aluminium alloy |
| Tent Fabric | 300gsm poly-cotton blackout canvas w/ anti-condensation coating |
| Rainfly Fabric | 180gsm waterproof polyester ripstop w/ blackout coating |
| Waterproof Rating | 8000 mm, suitable for heavy rain conditions |
| Mattress | 2 ³⁄₄" High-density foam |
| Seasons | 4 Season |
mportant Installation Safety Notice
1. Crossbar Thickness: Each tent includes a Standard Mounting Kit (1"–2"). If your bars are outside this range, use:
· Thick & Wide Kit — fits crossbars 2"-2.8"
2. Crossbar Width: Each tent includes a Standard Mounting Kit (2.4"–3.5"). If your bars are outside this range, use:
· Wide Kit — fits crossbars 3.5"–4.6"
· Round/Rectangle Kit — round bars 1"–1.7" or rectangle bars 1"–1.4"
Thick & Wide/ Wide/ Round/ Rectangle kits are not included by default. If needed, please contact our support team.
3. Crossbar Spacing: The distance between the crossbars must be 30"–60".
4. Dynamic Weight Capacity: Roof rack system must have a dynamic load rating of ≥165 lbs (75 kg).
Dynamic load rating applies while driving, static load capacity is usually 5–7× greater. The Galaxy weights :165 lbs. If your rack can hold the tent, it will also hold occupants inside—never travel with people in the tent.
5. Bolt Positioning: Ensure the bolt head is firmly seated in the recess to prevent rotation.
6. Tighten Nuts: Fully secure both the black quick-release nuts and the anti-slip nuts (with the blue rubber ring) at the screw ends. If there isn’t enough space for both, the anti-slip nuts must be installed.
7. Spacing: After tightening all the nuts, if the clearance between the U-bracket and the T-slot is less than 1/5 inch (5 mm), please contact us for assistance.
8. Routine Check: Regularly inspect and re-tighten all nuts before each trip, especially if the tent has been mounted for an extended period.
